为什么选择LSTM？#

在量化交易中，时间序列预测是核心问题。传统的ARIMA、GARCH模型假设线性关系和稳态，而**长短期记忆网络（LSTM）**能够捕捉：

✅ 非线性模式
✅ 长期依赖关系
✅ 波动率聚类效应
✅ 市场情绪变化的滞后性

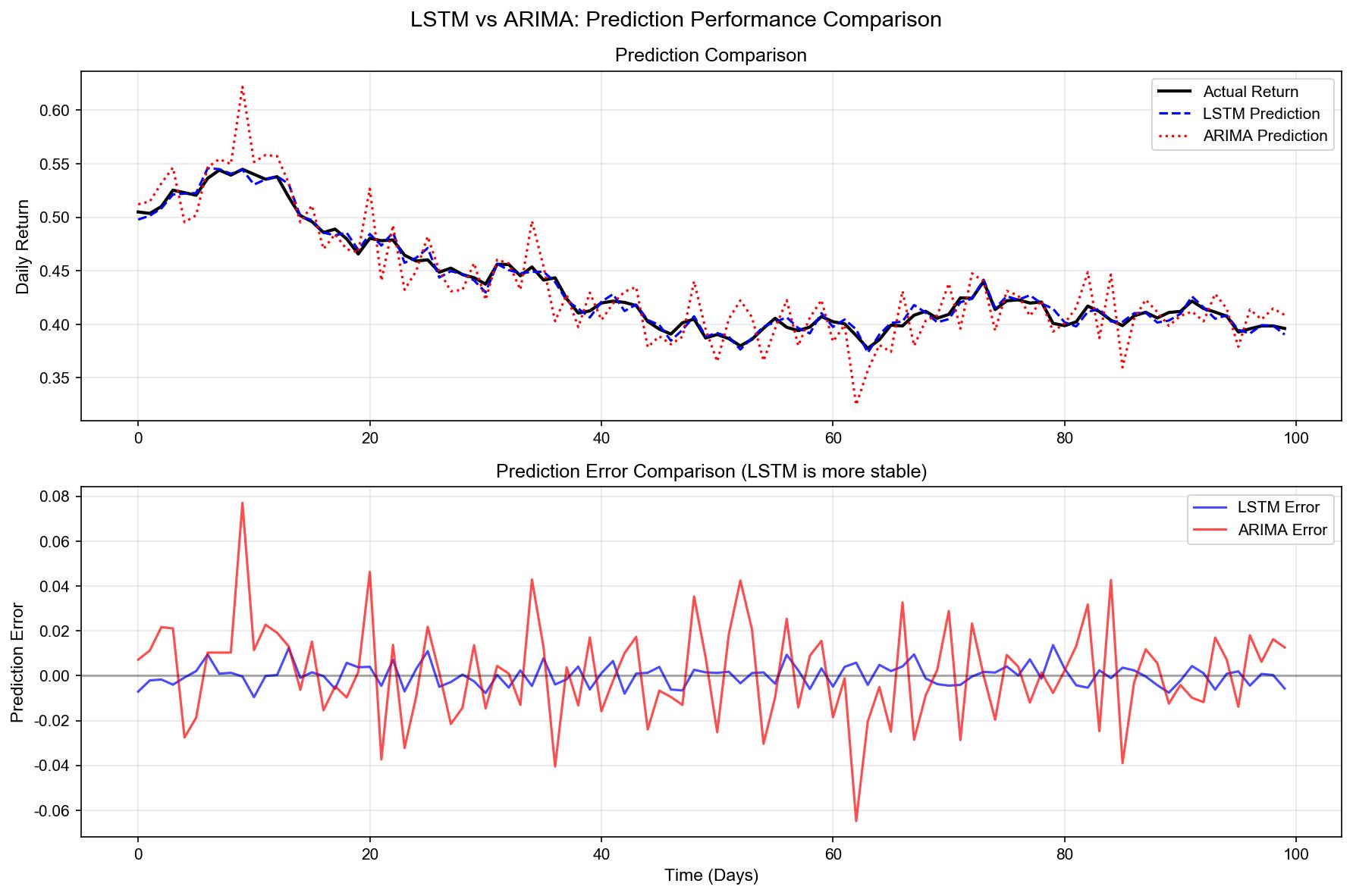

LSTM与传统模型预测效果对比

LSTM架构详解#

核心组件#

LSTM通过门控机制解决RNN的梯度消失问题：

遗忘门（Forget Gate）：决定丢弃哪些历史信息 $f_t = \sigma(W_f \cdot [h_{t-1}, x_t] + b_f)$
输入门（Input Gate）：更新细胞状态 $i_t = \sigma(W_i \cdot [h_{t-1}, x_t] + b_i)$ $\tilde{C}_t = \tanh(W_C \cdot [h_{t-1}, x_t] + b_C)$
输出门（Output Gate）：决定输出哪些信息 $o_t = \sigma(W_o \cdot [h_{t-1}, x_t] + b_o)$ $h_t = o_t \cdot \tanh(C_t)$

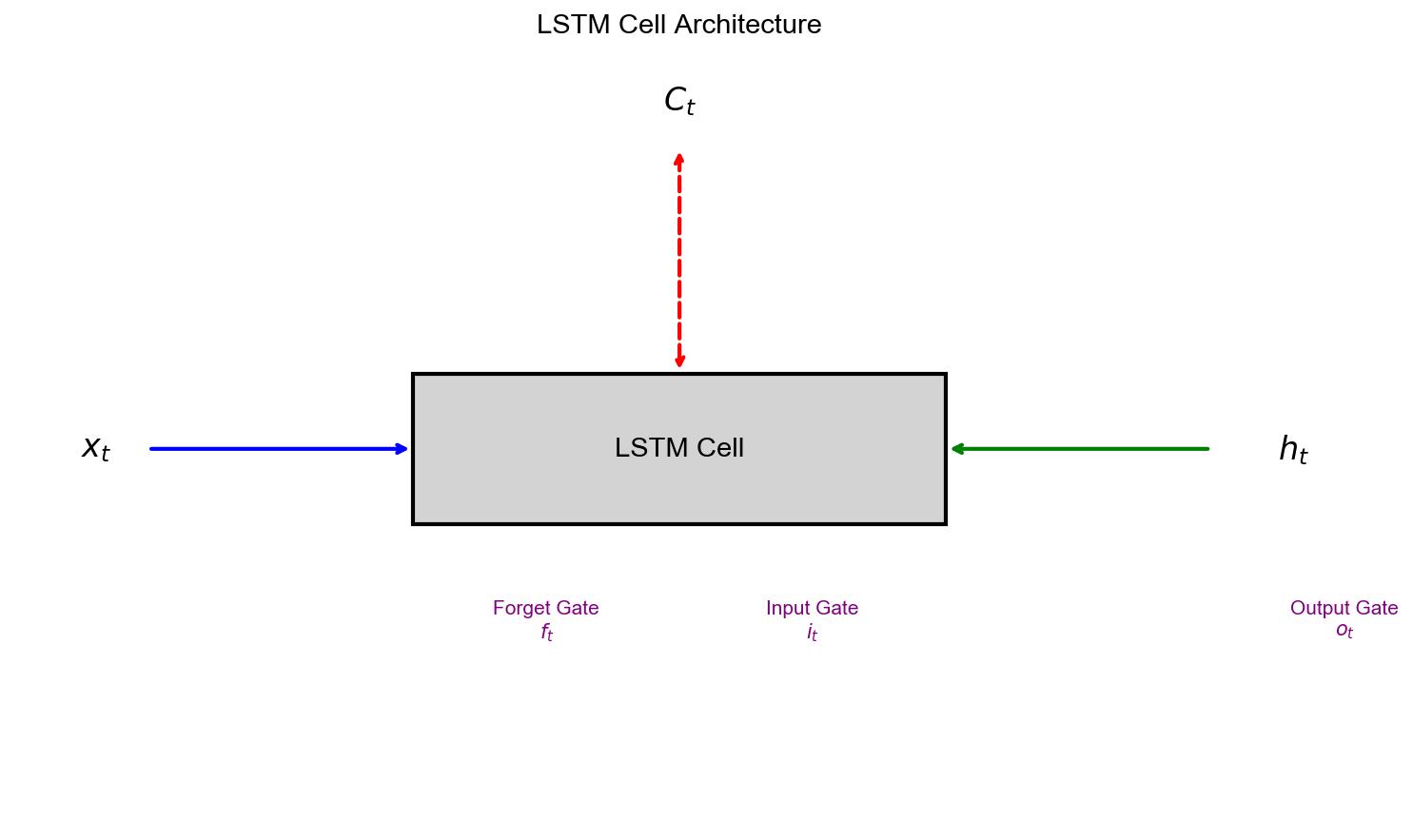

LSTM单元结构图

实战案例：预测沪深300指数_next_day_return#

让我用一个完整案例演示如何使用LSTM预测股票价格收益率。

Step 1: 数据准备与特征工程#

import akshare as ak
import pandas as pd
import numpy as np
from sklearn.preprocessing import MinMaxScaler

# 1. 获取沪深300指数数据
def get_hs300_data(start="20200101", end="20251231"):
    df = ak.stock_zh_index_daily(symbol="sh000300")
    df['date'] = pd.to_datetime(df['date'])
    df = df[(df['date'] >= start) & (df['date'] <= end)]
    df.set_index('date', inplace=True)
    return df

df = get_hs300_data()

# 2. 特征工程
def create_features(df):
    df = df.copy()

    # 技术指标
    df['MA_5'] = df['close'].rolling(5).mean()
    df['MA_20'] = df['close'].rolling(20).mean()
    df['RSI'] = calculate_rsi(df['close'], 14)
    df['VOLATILITY'] = df['close'].pct_change().rolling(20).std() * np.sqrt(252)

    # 滞后特征
    for lag in [1, 2, 3, 5, 10]:
        df[f'return_lag_{lag}'] = df['close'].pct_change(lag)

    # 目标变量：明日收益率
    df['target'] = df['close'].pct_change().shift(-1)

    return df.dropna()

def calculate_rsi(prices, window=14):
    delta = prices.diff()
    gain = (delta.where(delta > 0, 0)).rolling(window=window).mean()
    loss = (-delta.where(delta < 0, 0)).rolling(window=window).mean()
    rs = gain / loss
    return 100 - (100 / (1 + rs))

df_features = create_features(df)

# 3. 数据标准化
scaler_X = MinMaxScaler()
scaler_y = MinMaxScaler()

feature_cols = ['close', 'MA_5', 'MA_20', 'RSI', 'VOLATILITY',
                'return_lag_1', 'return_lag_2', 'return_lag_3']

X = scaler_X.fit_transform(df_features[feature_cols])
y = scaler_y.fit_transform(df_features[['target']])

print(f"特征维度: {X.shape}, 样本数: {len(X)}")

python

Step 2: 构建LSTM模型#

import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import LSTM, Dense, Dropout
from tensorflow.keras.optimizers import Adam
from sklearn.model_selection import train_test_split

# 1. 构造时间序列样本
def create_sequences(X, y, seq_length=20):
    X_seq, y_seq = [], []
    for i in range(seq_length, len(X)):
        X_seq.append(X[i-seq_length:i])
        y_seq.append(y[i])
    return np.array(X_seq), np.array(y_seq)

SEQ_LENGTH = 20  # 使用过去20天预测明天
X_seq, y_seq = create_sequences(X, y, SEQ_LENGTH)

# 2. 划分训练集/验证集/测试集
X_train, X_temp, y_train, y_temp = train_test_split(X_seq, y_seq, test_size=0.3, shuffle=False)
X_val, X_test, y_val, y_test = train_test_split(X_temp, y_temp, test_size=0.5, shuffle=False)

print(f"训练集: {X_train.shape}, 验证集: {X_val.shape}, 测试集: {X_test.shape}")

# 3. 构建LSTM模型
def build_lstm_model(input_shape):
    model = Sequential([
        LSTM(64, return_sequences=True, input_shape=input_shape),
        Dropout(0.2),
        LSTM(32, return_sequences=False),
        Dropout(0.2),
        Dense(16, activation='relu'),
        Dense(1, activation='tanh')  # 输出范围[-1, 1]对应收益率
    ])

    model.compile(
        optimizer=Adam(learning_rate=0.001),
        loss='mse',
        metrics=['mae']
    )
    return model

model = build_lstm_model((SEQ_LENGTH, X_train.shape[2]))
model.summary()

python

Step 3: 模型训练与超参数调优#

from tensorflow.keras.callbacks import EarlyStopping, ReduceLROnPlateau

# 1. 回调函数
early_stop = EarlyStopping(monitor='val_loss', patience=10, restore_best_weights=True)
lr_scheduler = ReduceLROnPlateau(monitor='val_loss', factor=0.5, patience=5, min_lr=1e-6)

# 2. 训练模型
history = model.fit(
    X_train, y_train,
    validation_data=(X_val, y_val),
    epochs=100,
    batch_size=32,
    callbacks=[early_stop, lr_scheduler],
    verbose=1
)

# 3. 可视化训练过程
import matplotlib.pyplot as plt

plt.figure(figsize=(12, 4))
plt.subplot(1, 2, 1)
plt.plot(history.history['loss'], label='Training Loss')
plt.plot(history.history['val_loss'], label='Validation Loss')
plt.title('Model Loss')
plt.legend()

plt.subplot(1, 2, 2)
plt.plot(history.history['mae'], label='Training MAE')
plt.plot(history.history['val_mae'], label='Validation MAE')
plt.title('Model MAE')
plt.legend()
plt.tight_layout()
plt.savefig('training_history.png')

python

Step 4: 模型评估与策略回测#

from sklearn.metrics import mean_squared_error, r2_score

# 1. 预测
y_pred = model.predict(X_test)
y_test_inv = scaler_y.inverse_transform(y_test)
y_pred_inv = scaler_y.inverse_transform(y_pred)

# 2. 评估指标
mse = mean_squared_error(y_test_inv, y_pred_inv)
r2 = r2_score(y_test_inv, y_pred_inv)
direction_accuracy = np.mean(np.sign(y_test_inv) == np.sign(y_pred_inv))

print(f"MSE: {mse:.6f}")
print(f"R²: {r2:.4f}")
print(f"方向准确率: {direction_accuracy:.2%}")

# 3. 策略回测
def backtest_strategy(y_true, y_pred, transaction_cost=0.00025):
    """
    简单的多空策略：
    - 预测收益率 > 0.5%：做多
    - 预测收益率 < -0.5%：做空
    - 否则：空仓
    """
    signals = np.zeros(len(y_pred))
    signals[y_pred.flatten() > 0.005] = 1
    signals[y_pred.flatten() < -0.005] = -1

    # 计算策略收益（扣除交易成本）
    strategy_return = signals * y_true.flatten()
    strategy_return[signals != 0] -= transaction_cost  # 交易时扣除成本

    # 累计收益
    cumulative_return = np.cumprod(1 + strategy_return)

    # 绩效指标
    total_return = cumulative_return[-1] - 1
    sharpe = np.mean(strategy_return) / np.std(strategy_return) * np.sqrt(252)
    max_dd = np.min(cumulative_return / np.maximum.accumulate(cumulative_return) - 1)

    return {
        'total_return': total_return,
        'sharpe_ratio': sharpe,
        'max_drawdown': max_dd,
        'cumulative_return': cumulative_return
    }

results = backtest_strategy(y_test_inv, y_pred_inv)
print(f"\n=== 策略回测结果 ===")
print(f"总收益率: {results['total_return']:.2%}")
print(f"夏普比率: {results['sharpe_ratio']:.2f}")
print(f"最大回撤: {results['max_drawdown']:.2%}")

python

关键优化技巧#

1. 防止过拟合#

问题：LSTM容易在量化数据上过拟合（噪声记忆）

解决方案：

# 正则化
from tensorflow.keras.regularizers import l2

model.add(LSTM(64, kernel_regularizer=l2(0.01), recurrent_regularizer=l2(0.01)))

# 早停
early_stop = EarlyStopping(monitor='val_loss', patience=10, restore_best_weights=True)

#  dropout
model.add(Dropout(0.3))  # 输入dropout
model.add(LSTM(64, dropout=0.2, recurrent_dropout=0.2))  # 循环dropout

python

2. 处理非平稳性#

问题：股票价格是非平稳的，直接预测价格会导致模型失效

解决方案：

✅ 预测收益率而非价格
✅ 使用差分或对数收益率
✅ 预测方向而非幅度（分类问题）

# 方案A：预测方向（分类）
from tensorflow.keras.utils import to_categorical

y_direction = np.sign(y)  # -1, 0, 1
y_cat = to_categorical(y_direction + 1)  # 转换为one-hot

model.add(Dense(3, activation='softmax'))  # 3分类
model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])

# 方案B：预测分位数（回归）
# 使用Quantile Loss而非MSE，对异常值更鲁棒
def quantile_loss(q):
    def loss(y_true, y_pred):
        e = y_true - y_pred
        return tf.reduce_mean(tf.maximum(q*e, (q-1)*e))
    return loss

model.compile(optimizer='adam', loss=quantile_loss(0.5))  # 中位数回归

python

3. 特征选择#

不是所有技术指标都有效！使用递归特征消除（RFE）或SHAP值选择重要特征：

import shap
import matplotlib.pyplot as plt

# 1. 训练一个可解释的模型（如XGBoost）作为代理
import xgboost as xgb
explainer = shap.TreeExplainer(xgb_model)
shap_values = explainer.shap_values(X_train[:1000])

# 2. 可视化特征重要性
shap.summary_plot(shap_values, X_train[:1000], feature_names=feature_cols)

# 3. 选择TOP特征
selected_features = ['RSI', 'VOLATILITY', 'return_lag_1', 'MA_5']

python

从模型到实盘：部署架构#

在线预测流程#

实时行情API → 特征计算 → LSTM模型 → 交易信号 → 风控模块 → 订单执行
      ↓            ↓           ↓          ↓          ↓
    Tick数据   技术指标更新    TensorFlow  多空判断   仓位管理   券商API

plaintext

代码示例：实时预测服务#

from flask import Flask, request, jsonify
import tensorflow as tf

app = Flask(__name__)
model = tf.keras.models.load_model('lstm_model.h5')
scaler = joblib.load('scaler.pkl')

@app.route('/predict', methods=['POST'])
def predict():
    data = request.json
    features = np.array(data['features']).reshape(1, -1)

    # 标准化
    features_scaled = scaler.transform(features)

    # 构造序列
    seq = features_scaled.reshape(1, SEQ_LENGTH, -1)

    # 预测
    pred = model.predict(seq)
    pred_inv = scaler_y.inverse_transform(pred)

    return jsonify({
        'predicted_return': float(pred_inv[0][0]),
        'signal': 'BUY' if pred_inv[0][0] > 0.005 else 'SELL' if pred_inv[0][0] < -0.005 else 'HOLD'
    })

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000)

python

总结与展望#

LSTM在量化交易中的应用前景广阔，但要注意：

✅ 数据质量 > 模型复杂度：垃圾进，垃圾出
✅ 避免过拟合：使用正则化、早停、交叉验证
✅ 结合传统方法：LSTM + ARIMA 混合模型往往更有效
✅ 实盘谨慎：纸上交易（Paper Trading）至少3个月再上实盘

下一步：我将介绍如何使用Attention机制改进LSTM（Transformer架构），以及如何处理高频数据（分钟级/秒级）的预测问题。

完整代码已上传到GitHub，包含数据获取、模型训练、回测框架的完整Pipeline。如有疑问，欢迎评论区交流！
